Product details description
*Products support customization
(see parameter table)the specific gravity is subject toconsultation at the time of ordering!

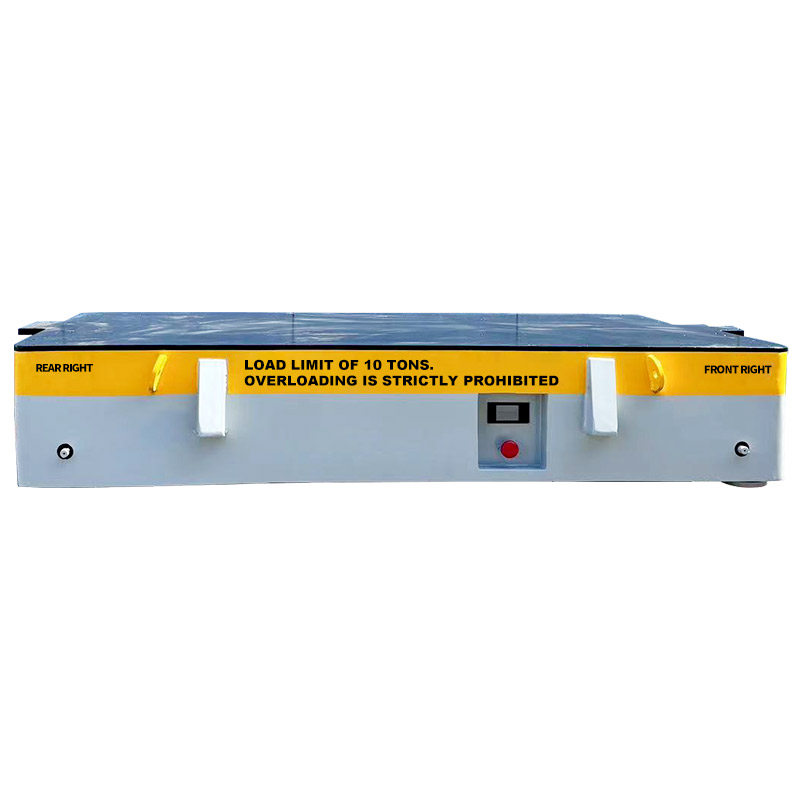

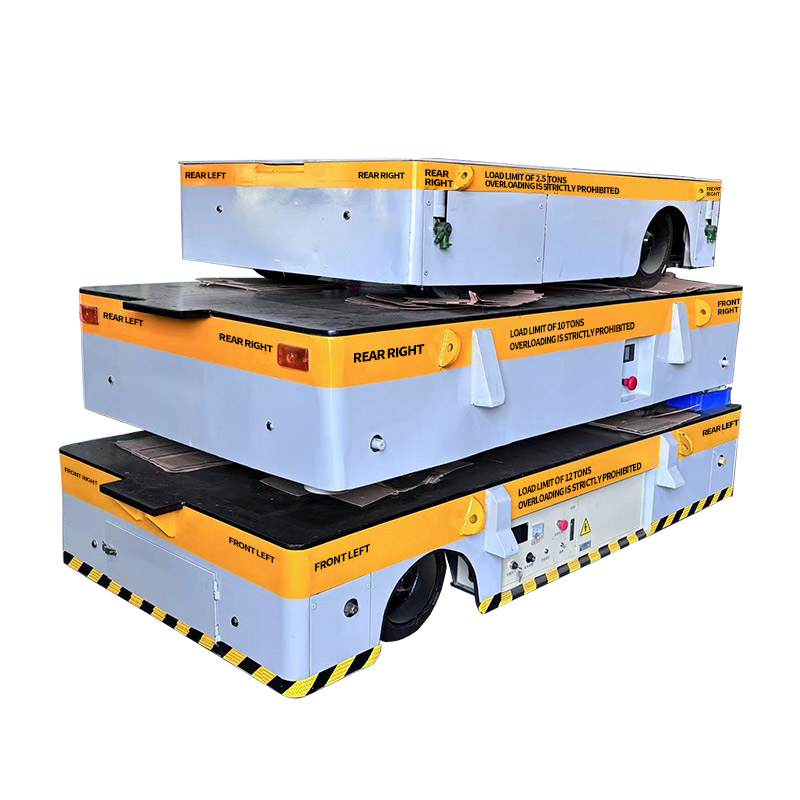

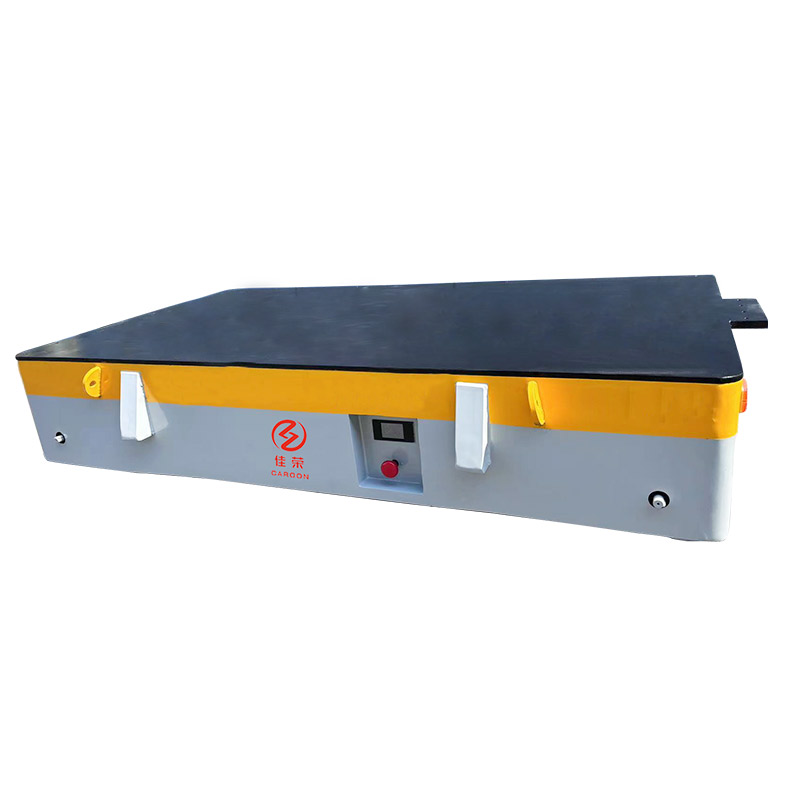

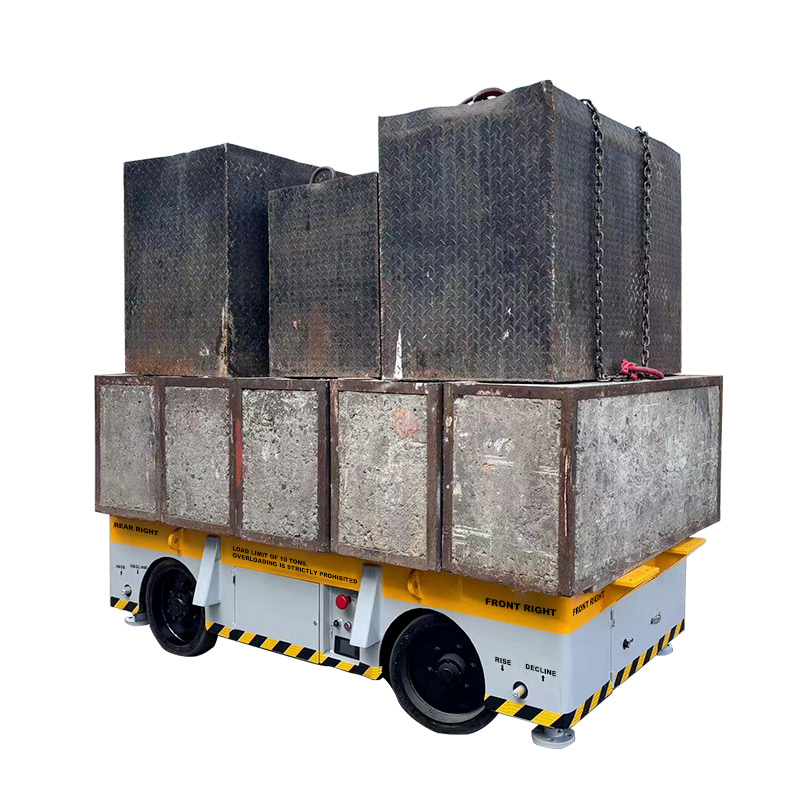

| Electric remote control trackless handing flat cat | 3tons | 5tons | 10tons | 15-20tons | |
| Specification parameters | |||||
| Size parameters | length*width(mm) | 3200*1600 | 3600*1800 | 4000*2000 | 5000*2200 |
| carheight（mm） | 500 | 550 | 600 | 650 | |
| wheelbase（mm） | 2000 | 2200 | 2400 | 3000 | |
| mini turning radius（mm） | 3200 | 3600 | 4000 | 5000 | |
| mini ground clearance（mm） | 50 | 50 | 80 | 100 | |
| body weight | 1.2 | 1.6 | 2.4 | 3.6 | |
| Stuctural parameters | |||||
| Motor | type of motor | DC brushless | DC series excition | ||
| motor power | 2.2 | 3 | 4.5 | 5.5 | |
| Speed | maximum speed | 35m/min | 25m/min | ||
| speed regulation | stepless speed regulation | ||||
| Run | ability to climb | ≤5% | |||
| braking mode | electromagnetic braking | ||||
| drive mode | differential drive | ||||
| turning mode | hydraulic steering | ||||
| Power supply system | |||||
| battery | type of battery | lead-acid power battery, lead-acid maintenance-free battery, lithium battery | |||
| battery capacity | 180Ah | 210Ah | 250Ah | 330Ah | |
| battery voltage | 48V | ||||
| charging | charging power source | 220 | 380 | ||
| charging time | 6h-8h | ||||
| endurance | battery life(full load) | >3h | |||
| range(full load) | >5km | ||||
| Control system | |||||
| controls | motor driver | brushless electronic control | series electric control | ||
| master controller | PLC | ||||
| 1)Body gear with lifting hook,locker,wireless remote control,wired remote control and repair kit. 2)Safety gear with scram button,traffic audible and visual alarm,Anti-collision buffer block and Anti-skid parking. 3)Appliance protection with undervoltage protection,overload protection,short ciruit protection,overcurrent protection and overheat protection. 4)Smart safety assist system with voice broadcast,charging reminders,start and stop smoothly and slowly and automatic slow down when turning. | |||||
| Electric remote control trackless handing flat cat | 20-30 tons | 40-50 tons | 60-80 tons | 80-100 tons | |
| Specification parameters | |||||
| Size parameters | length*width(mm) | 6000*2400 | 6000*2600 | 8000*2800 | 8000*2800 |
| carheight（mm） | 750 | 850 | 1000 | 1200 | |
| wheelbase（mm） | 3600 | 3600 | 5000 | 5000 | |
| mini turning radius（mm） | 6000 | 6000 | 8000 | 8000 | |
| mini ground clearance（mm） | 100 | 150 | 150 | 200 | |
| body weight | 4.6 | 5.5 | 7.2 | 8 | |
| Stuctural parameters | |||||
| Motor | type of motor | Alternating current motor | DC series excition | ||
| motor power | 6.3 | 8 | 10 | 15 | |
| Speed | maximum speed | 25m/min | 15m/min | ||
| speed regulation | stepless speed regulation | ||||
| Run | ability to climb | ≤5% | |||
| braking mode | electromagnetic braking | hydraulic braking | |||
| drive mode | differential drive | ||||
| turning mode | hydraulic steering | ||||
| Power supply system | |||||
| battery | type of battery | lead-acid power battery, lead-acid maintenance-free battery, lithium battery | |||
| battery capacity | 400Ah | 560Ah | 620Ah | 620Ah | |
| battery voltage | 48V | 72V | |||
| charging | charging power source | 380 | |||
| charging time | 6h-8h | ||||
| endurance | battery life(full load) | >3h | |||
| range(full load) | >5km | ||||
| Control system | |||||
| controls | motor driver | series electric control | Ac electronic control | ||
| master controller | PLC | ||||
